Shako BM520-02-D

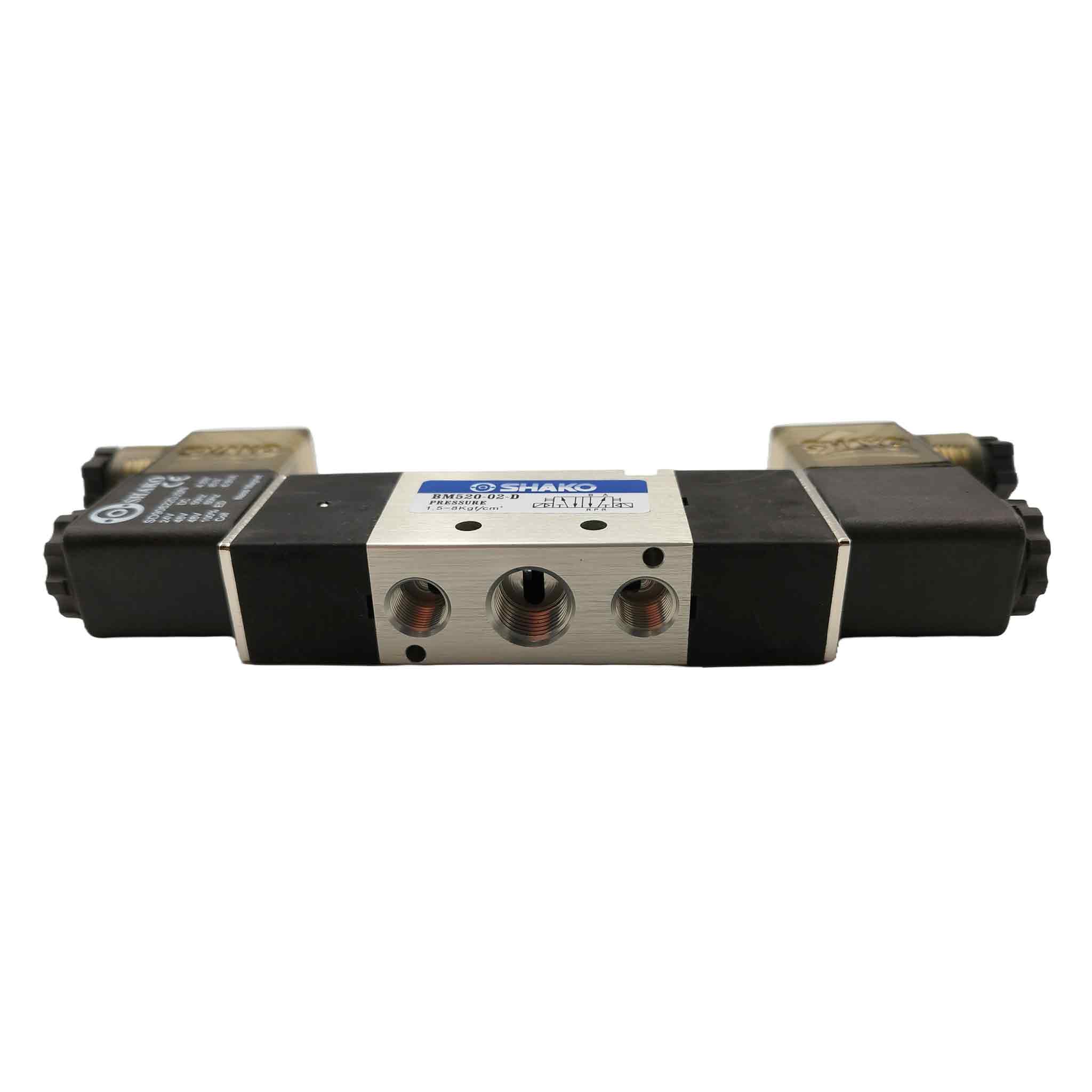

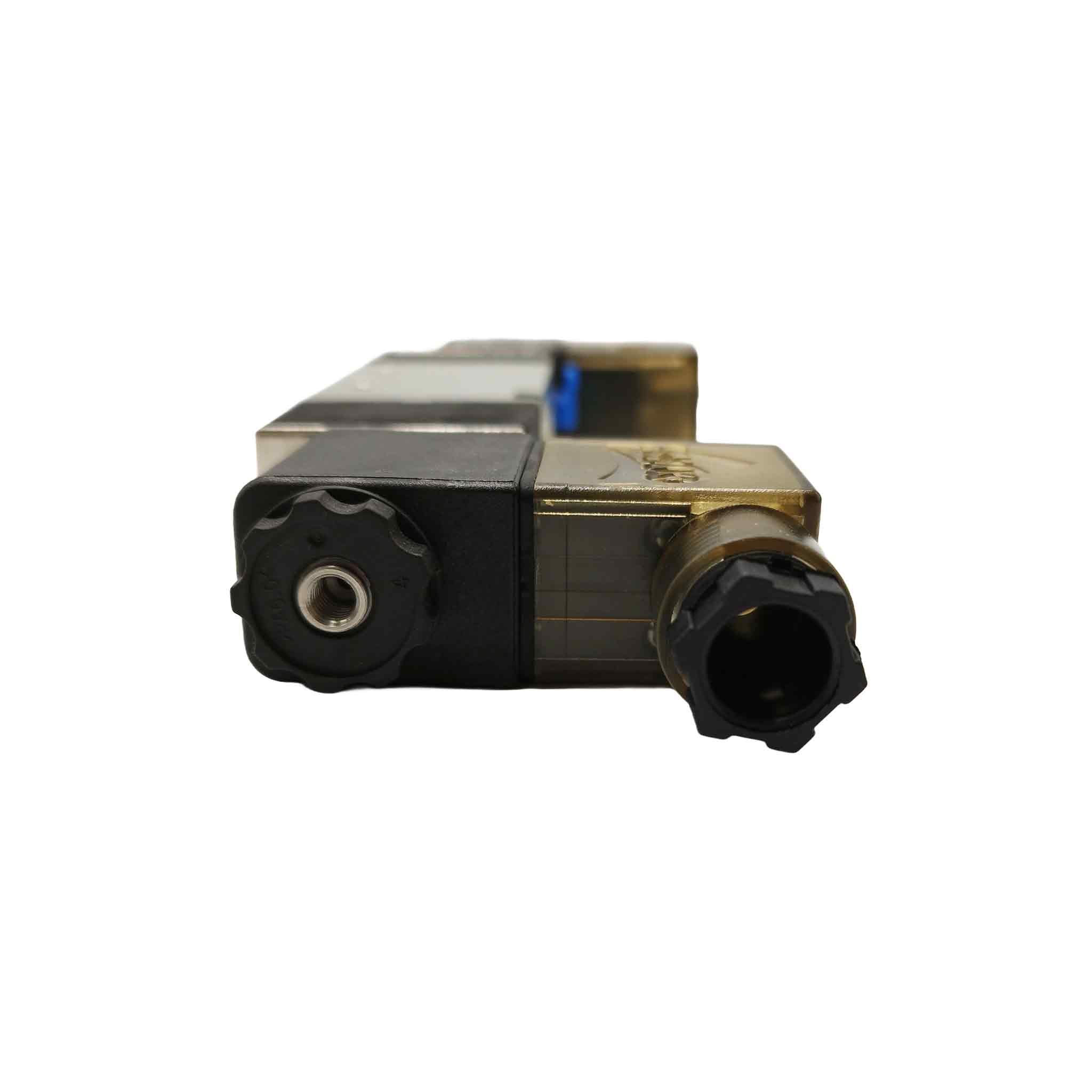

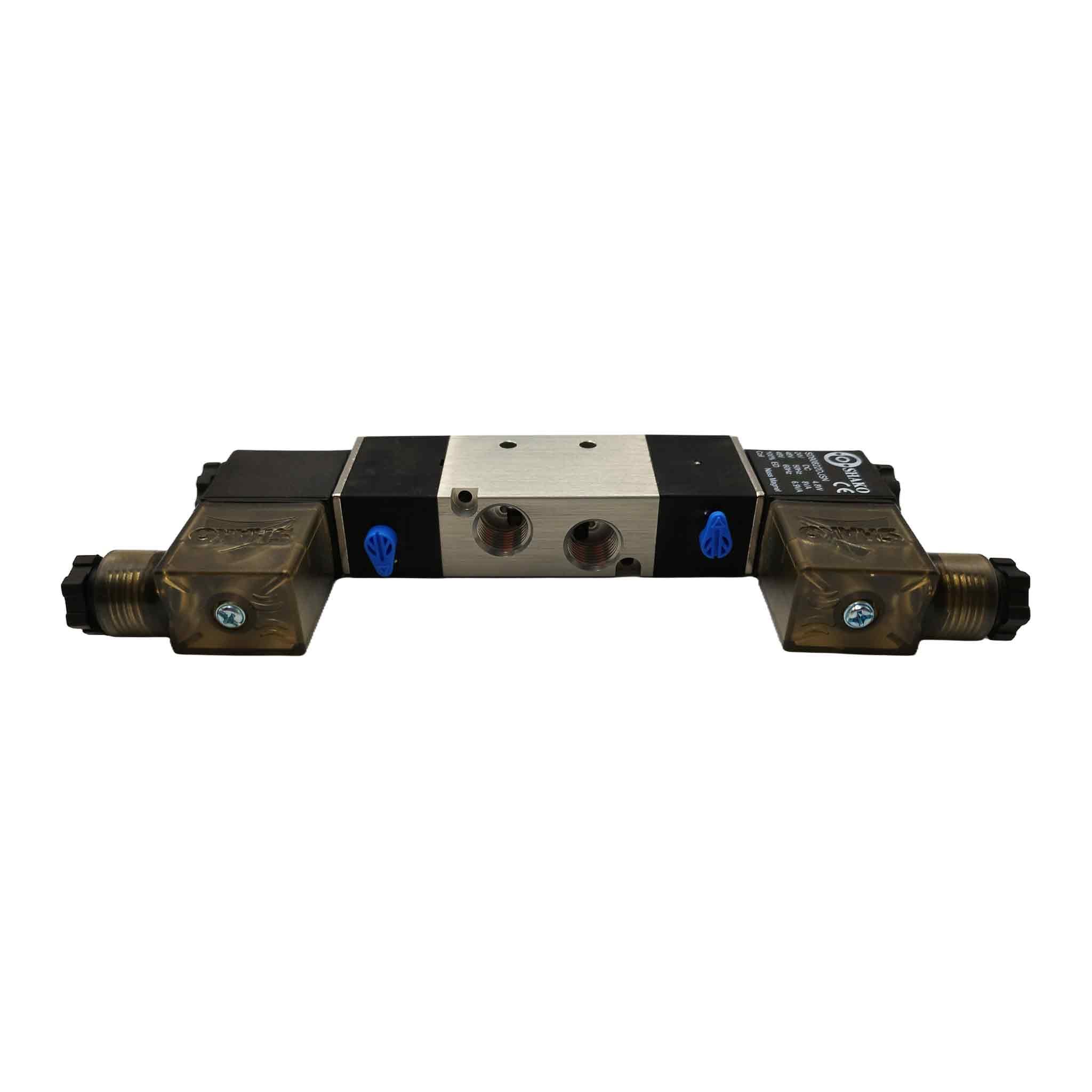

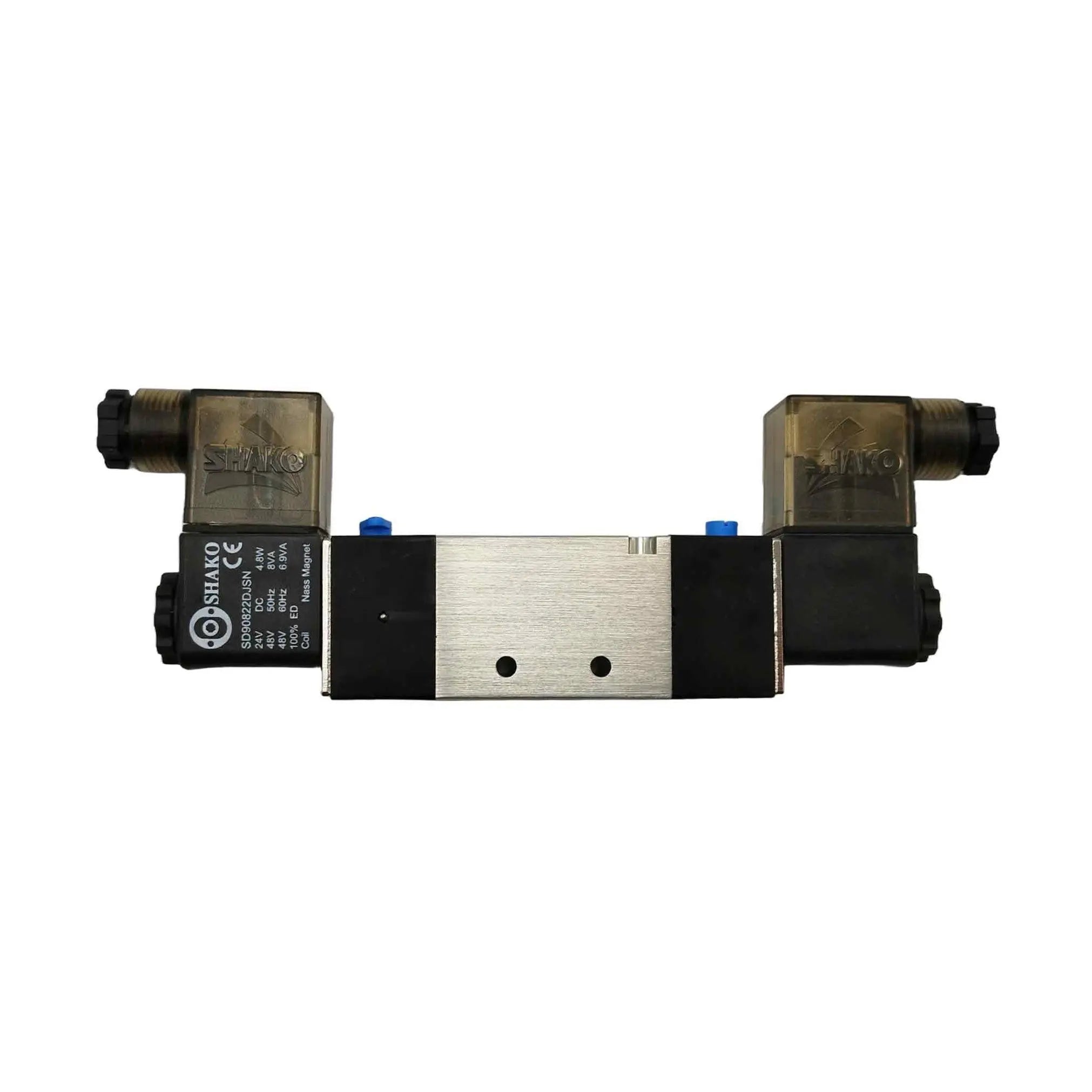

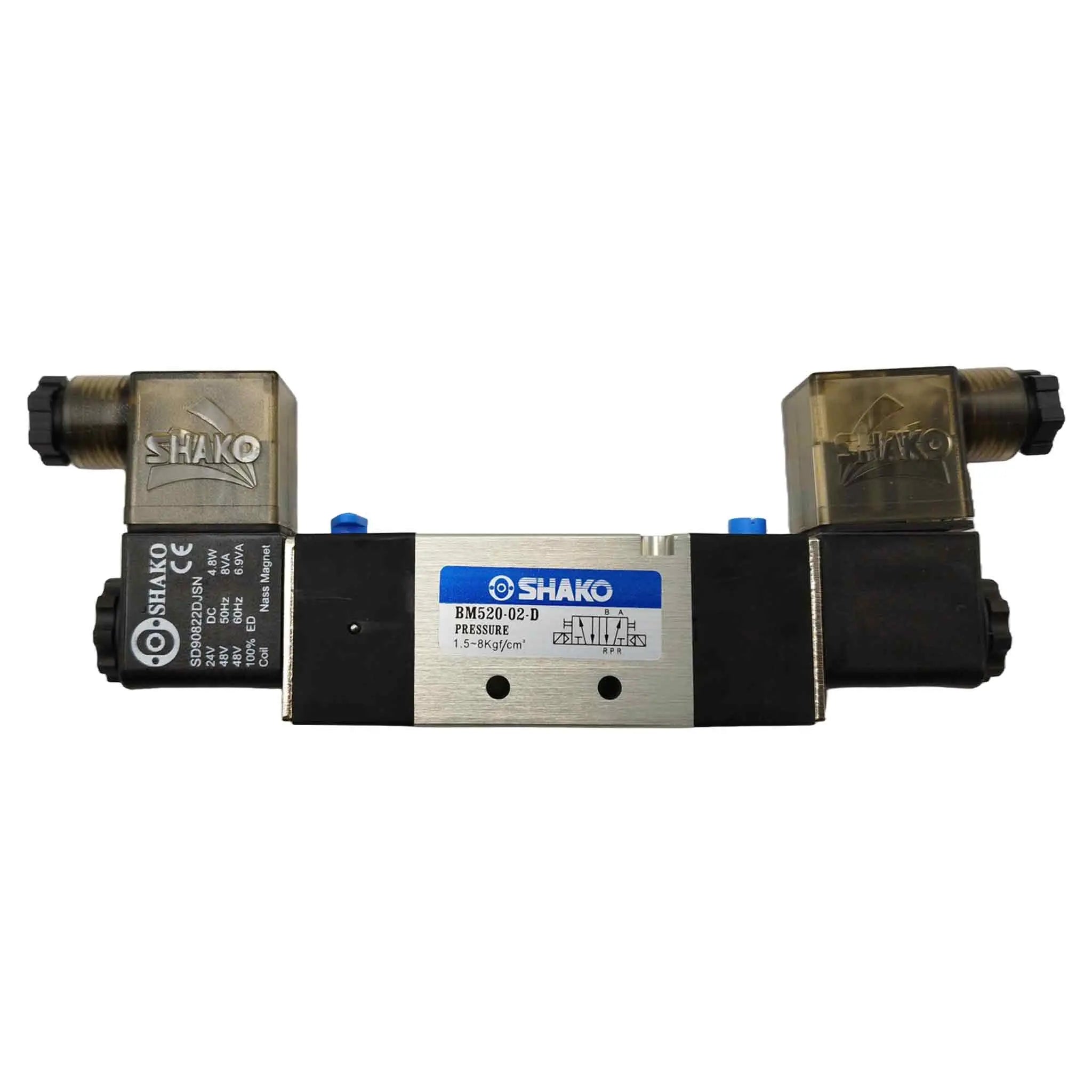

Product description: SHAKO BM520-02-D solenoid valve (DC 24V)

The SHAKO BM520-02-D is a powerful 5/2-way solenoid valve with dual coil , specifically designed for use in pneumatic control systems. It enables precise control of compressed air and is used in a wide variety of industrial applications.

This model operates with an operating voltage of 24V DC , making it particularly suitable for control systems in mechanical engineering, automation technology, and industrial production processes. Its compact design, with a width of 22 mm, facilitates integration into existing systems.

Technical specifications

• Valve type: 5/2-way solenoid valve
• Operating mode: double coil
• Connection size: 1/4 inch
• Operating voltage: 24V DC
• Width: 22 mm
• Control: Electromagnetic
• Operating pressure: Depending on the model up to 10 bar
• Flow rate: High flow performance for efficient control
• Material: Robust construction for industrial applications

Application areas of the SHAKO BM520-02-D (24V DC)

The SHAKO BM520-02-D (24V DC) solenoid valve is used in various industrial areas where reliable pneumatic control is required.

Typical areas of application:

1. Automation technology

The solenoid valve is ideal for automated manufacturing processes and enables precise control of machine components, which contributes to increased efficiency in production.

2. Mechanical engineering

In machines and systems that work with compressed air, the SHAKO BM520-02-D ensures reliable control of pneumatic cylinders and other actuators.

3. Robotics and conveyor technology

The valve is often used in robot arms and conveyor systems to enable fast and precise movements.

4. Packaging industry

In packaging systems, the solenoid valve helps control gripper arms, conveyor systems and other pneumatic components.

5. Vehicle and automotive industry

The SHAKO BM520-02-D is used in automated production lines in the automotive industry, especially in compressed air systems and test devices.

6. Medical technology and laboratory automation

The valve is also used in medical technology, for example to control laboratory equipment, analytical devices or medical dosing systems.

Advantages of the SHAKO BM520-02-D (DC 24V)

• Energy efficient: The 24V DC coils provide reliable performance with lower energy consumption.
• High precision: The double coil enables fast and precise switching of the valve.
• Robust construction: Durable and suitable for demanding industrial environments.
• Compact design: Space-saving integration thanks to 22 mm width.
• Easy installation: Standardized 1/4-inch connections allow for quick installation.
• Versatile: Suitable for various industrial applications, from automation to medical technology.

Installation and assembly of the SHAKO BM520-02-D (DC 24V)

The installation of the solenoid valve is simple and can be done in just a few steps:

1. Relieve system pressure: Ensure that the pneumatic system is depressurized before installation.
2. Mechanical installation: Connect the valve to the appropriate lines using the 1/4-inch connections.
3. Electrical wiring: Wire the 24V DC coils correctly and connect them according to the technical documentation.
4. Leak test: After installation, check the system for leaks.
5. Commissioning: Test the valve to ensure it is functioning properly.
6. Maintenance: Regular cleaning and inspection of the compressed air lines ensure a long service life.

Conclusion

The SHAKO BM520-02-D (DC 24V) is a reliable solenoid valve for pneumatic control systems. It features a robust design, high precision, and easy installation. Thanks to its 24V DC operating voltage, it is ideal for industrial automation processes, mechanical engineering, and other demanding applications.

If you require further technical details or advice on application, please contact the manufacturer or an authorized dealer.
