magnetic parallel bars and workpiece supports 100 mm
Original MagTriXX product - Made in Austria
Parallel bars 100 mm: Precision and versatility for your workshop
Why are parallel bars indispensable?
100 mm workpiece supports are among the essential tools in metalworking. They enable precise clamping of workpieces and ensure exact alignment during machining. The 100 mm parallel supports are particularly versatile and offer numerous advantages when combined with vises.
Technical features of workpiece supports 100 mm
1. High-quality material
Parallel bars are made of hardened tool steel, which ensures durability and wear resistance. The hardness of the material is often between 55 and 65 HRC, ensuring high resilience.
2. Precision and accuracy
Thanks to a maximum parallelism deviation of 0.015 mm, these supports guarantee precise work results. They enable perfect workpiece alignment, which is essential for high-quality machining.
3. Versatile dimensions
The 100 mm long parallel bars are available in various cross-sections, such as 3 x 6 mm, 4 x 8 mm, or 6 x 12 mm. This variety makes them flexible for various clamping requirements.
Suitable vices for parallel supports 100 mm
1. Minimum span
Vices suitable for use with 100 mm parallel bars should have a clamping width of at least 100 mm. This ensures that the documents can be fully accommodated.
2. Clamping jaw height
The jaw height of the vise plays a crucial role. It should be high enough to securely hold the parallel supports and the workpiece.
3. Precision vices
A vise with precise guides and a sturdy construction ensures optimal results. Precision vises are therefore an excellent choice for working with parallel supports.
Advantages of the combination of workpiece supports and vices
1. Exact workpiece alignment
Parallel bars ensure that the workpiece is always perfectly aligned. This is especially important for drilling, milling, and grinding work.
2. Versatility
The different cross-sections of the 100 mm workpiece supports allow them to be used for workpieces of different sizes and shapes.
3. Protection against damage
The pads prevent sensitive workpieces from coming into direct contact with the clamping jaws, thus reducing the risk of surface damage.
Tips for using workpiece supports
1. Selecting the right dimensions
Choose parallel bars that fit the specific requirements of your work and the dimensions of your workpieces.
2. Cleaning before use
Make sure the substrates are free of dirt and grease to ensure optimal adhesion and alignment.
3. Regular maintenance
Check the parallel pads regularly for wear and damage to ensure a long service life and consistent precision.
Conclusion: Precision at the highest level
100 mm parallel bars are essential tools for precise metalworking tasks. Combined with a suitable vise, they offer unbeatable advantages in terms of accuracy, versatility, and workpiece protection. Invest in high-quality parallel bars and vises to take your workshop to the next level.
Frequently Asked Questions (FAQs)
1. Which parallel documents are suitable for my tasks?
Choose the size and cross-section according to the dimensions of your workpiece and vice.
2. Can I use parallel supports in all vices?
The vices should have a clamping width of at least 100 mm and a sufficient clamping jaw height to hold the parallel supports securely.
3. How do I properly care for workpiece supports?
Clean the documents regularly and store them in a dry, dust-free environment to prevent rust.
Use 100 mm workpiece supports and experience the difference in precision and efficiency!

Description

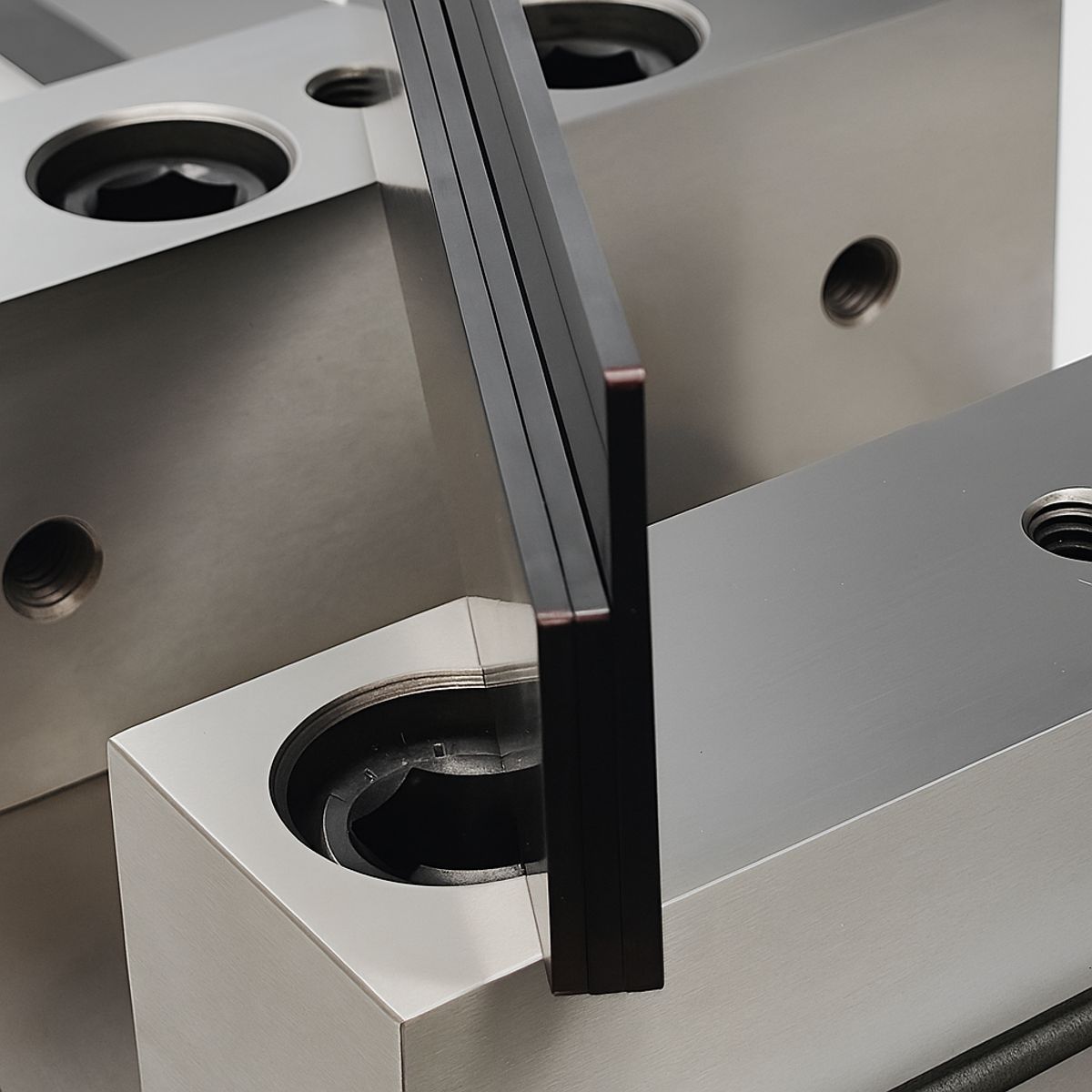

Magnetic parallel pads.
magnetic parallel bars and workpiece supports 100 mm
Experience the difference! Quick and easy setup without additional tools.
Back
Spring steel ground and hardened
Neodymium
+/- 0.01 mm
FAQ
Frequently Asked Questions (FAQ) are designed to answer some of the most pressing questions.
How long does delivery take?
We process orders the same day. Your order will be ready for dispatch the next day. Delivery within the EU is usually 2–3 working days. For non-EU countries, delivery may take slightly longer depending on the delivery country. We value the fast delivery of our products.
Are there chips sticking to the parallel supports?
When the parallel bar is connected to the vise surface, no chips can accumulate behind it. The magnets are designed to prevent chips from sticking to the front.
Do magnetic parallel supports work for all vices
The parallel supports from MagTriXX are available in different lengths
The MagTriXX parallel supports are available in parallel lengths of 50
mm, 70 mm, 90 mm, 100 mm, 125 mm, 150 mm, 160 mm and 200 mm.
What are the advantages of magnetic parallel pads
Investing in new magnetic parallel supports quickly pays for itself. Magnetizing the parallel supports allows for quick cleaning of the work area and can reduce setup time by up to 10%.
Can I put together a set myself?
Easily assemble your own customized set of parallel supports! In our online shop, you'll find a wide selection of individual pairs in over 200 different widths and heights. Combine them according to your wishes and needs to create the perfect set for your requirements. This way, you enjoy maximum flexibility and always have the ideal parallel supports for your specific applications at hand.
