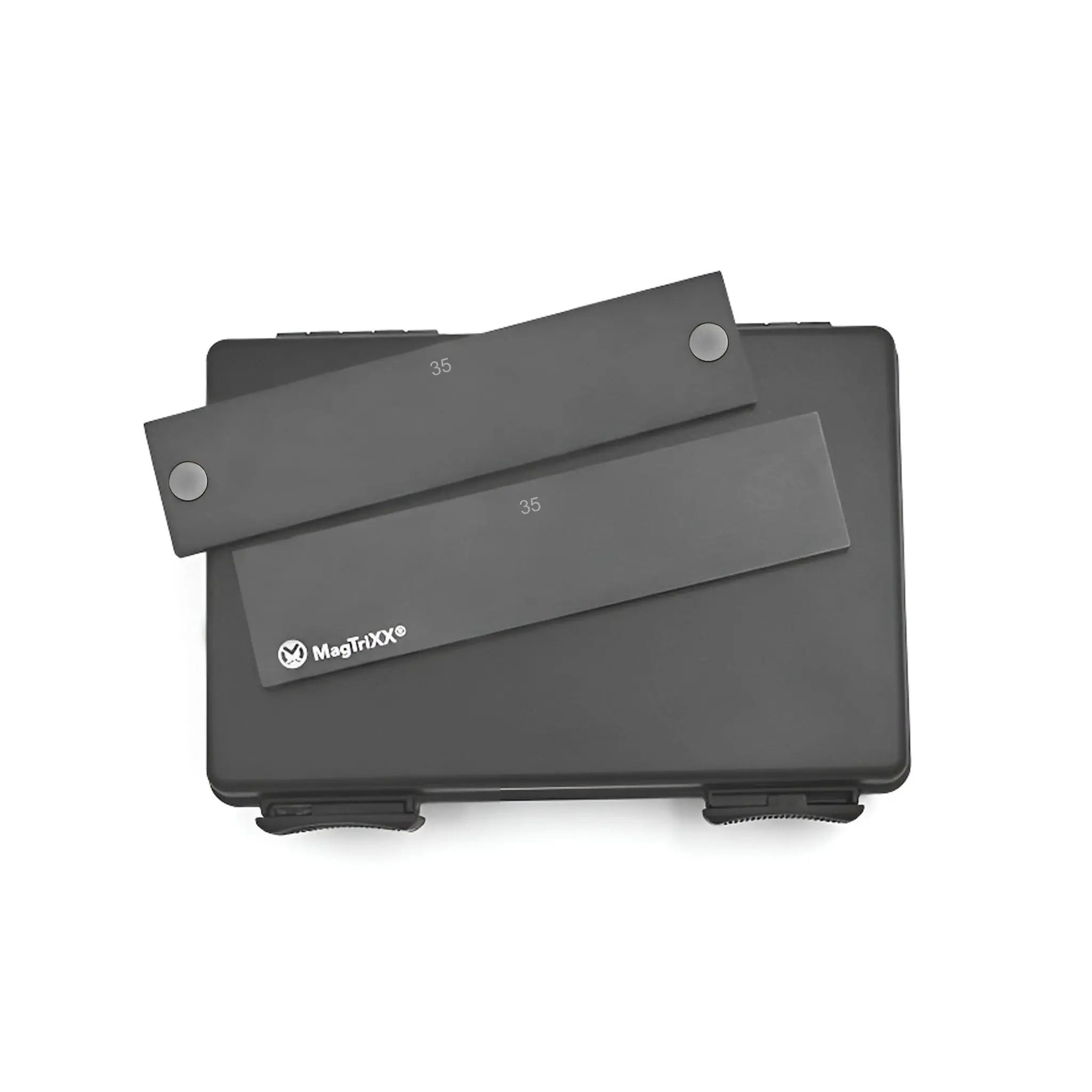

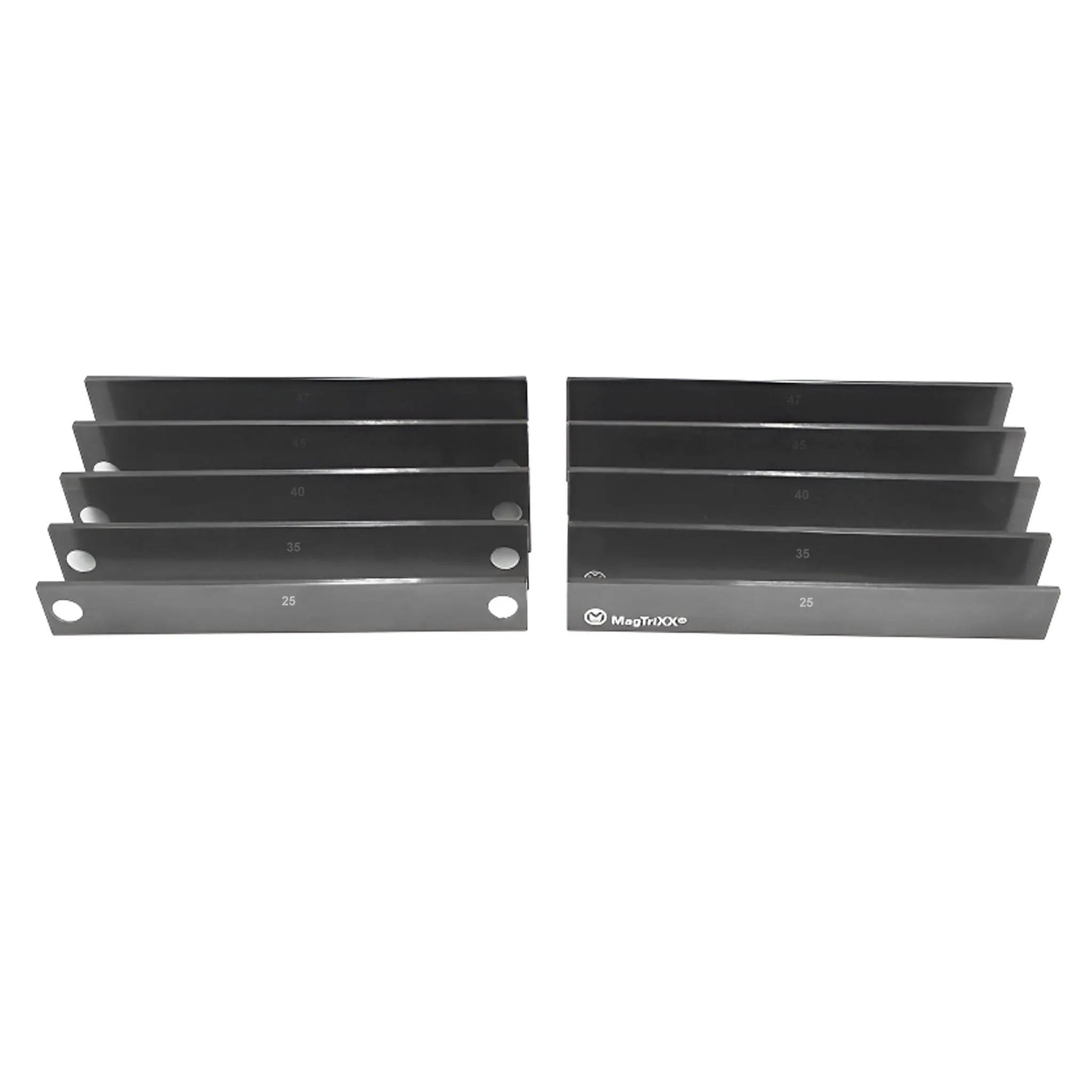

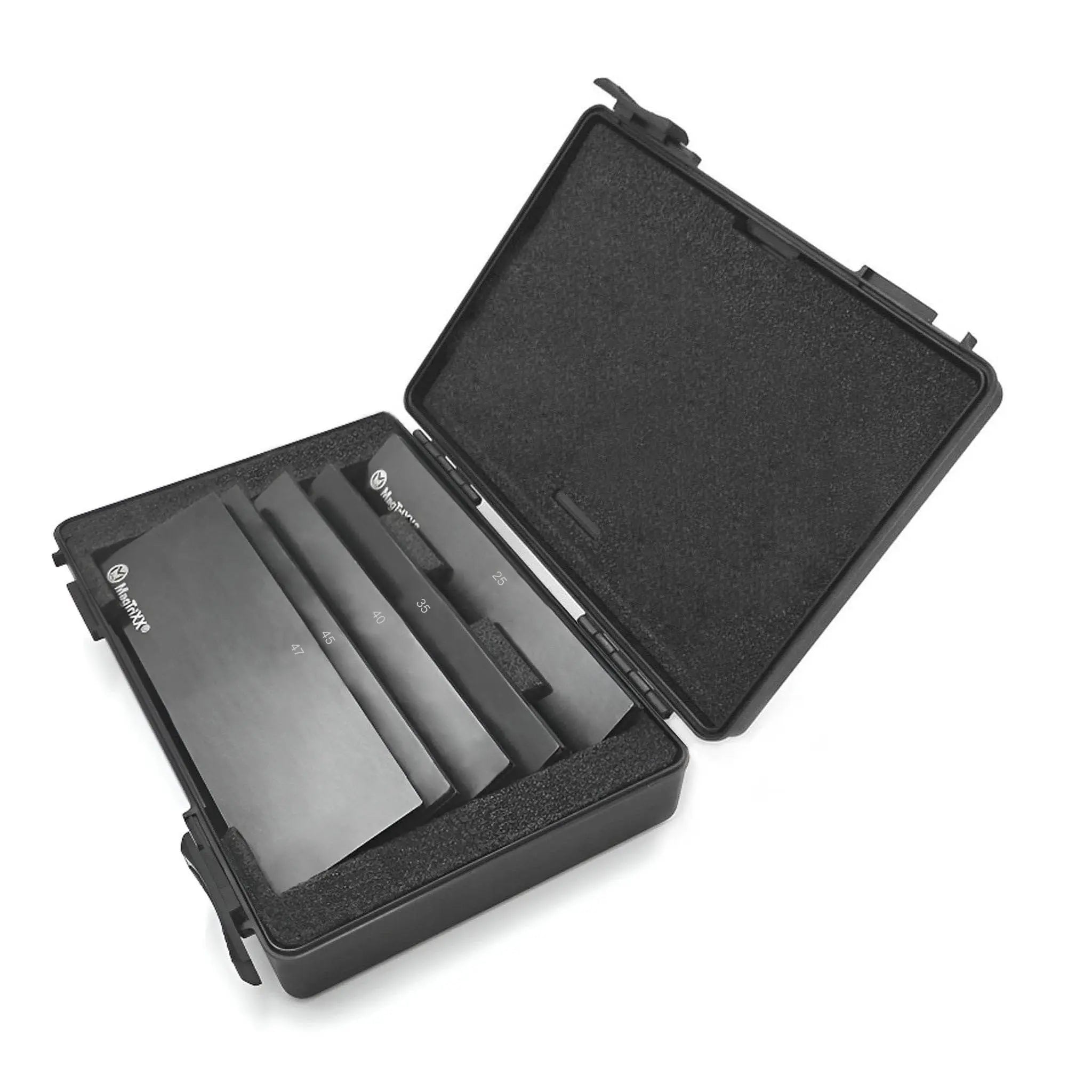

150 mm parallel bars set / 5 pairs 25/35/40/45/47x150x2.5 mm
Original MagTriXX product - Made in Austria
Magnetic parallel bars
are essential tools in precision machining, significantly improving the efficiency and accuracy of workpiece clamping. These innovative supports serve as clamping aids for stably positioning workpieces parallel to the axis during milling. Their applications are diverse: They can be used in combination with a machine vice for precise height adjustment of the workpiece in the vice, or as a protective base when clamped directly on the machine table.
One of the outstanding features of magnetic parallel supports is their ability to ensure strong adhesion thanks to integrated neodymium magnets. This allows for quick and easy placement of the supports without the need for additional screws or clamps. The magnets ensure that the supports remain securely and precisely in place, ensuring consistent clamping force and exact workpiece alignment. This not only reduces setup times but also significantly improves machining quality.
In addition, magnetic parallel supports offer the added benefit of protecting the machine table from damage, especially when drilling through workpieces. Resting the workpiece on these supports prevents accidental damage to the machine table during deep drilling or other machining operations. This is especially important for maintaining long-term machine precision and functionality.
The magnetic parallel bar
is available in various heights and widths, allowing them to be flexibly adapted to different workpiece sizes and requirements. They are precision-ground to ensure exact parallelism, which is particularly important when machining workpieces with tight tolerances. The magnetic adhesion on the inside of the supports also ensures that no metal chips get between the workpiece and the support, which further increases precision and reduces the need for frequent cleaning. In summary, magnetic parallel bars offer an ideal combination of functionality, protection, and precision. They optimize the workflow in the workshop by making workpiece clamping more efficient, extending the service life of machine components, and ensuring high machining quality. Whether in series production or for individual projects – magnetic parallel supports are indispensable tools that no workshop should be without.
Description
Magnetic parallel pads.
150 mm parallel bars set / 5 pairs 25/35/40/45/47x150x2.5 mm
Experience the difference! Quick and easy setup without additional tools.
Back
Spring steel ground and hardened
Neodymium
+/- 0.01 mm
FAQ
Frequently Asked Questions (FAQ) are designed to answer some of the most pressing questions.
How long does delivery take?
We process orders the same day. Your order will be ready for dispatch the next day. Delivery within the EU is usually 2–3 working days. For non-EU countries, delivery may take slightly longer depending on the delivery country. We value the fast delivery of our products.
Are there chips sticking to the parallel supports?
When the parallel bar is connected to the vise surface, no chips can accumulate behind it. The magnets are designed to prevent chips from sticking to the front.
Do magnetic parallel supports work for all vices
The parallel supports from MagTriXX are available in different lengths
The MagTriXX parallel supports are available in parallel lengths of 50
mm, 70 mm, 90 mm, 100 mm, 125 mm, 150 mm, 160 mm and 200 mm.
What are the advantages of magnetic parallel pads
Investing in new magnetic parallel supports quickly pays for itself. Magnetizing the parallel supports allows for quick cleaning of the work area and can reduce setup time by up to 10%.
Can I put together a set myself?
Easily assemble your own customized set of parallel supports! In our online shop, you'll find a wide selection of individual pairs in over 200 different widths and heights. Combine them according to your wishes and needs to create the perfect set for your requirements. This way, you enjoy maximum flexibility and always have the ideal parallel supports for your specific applications at hand.
