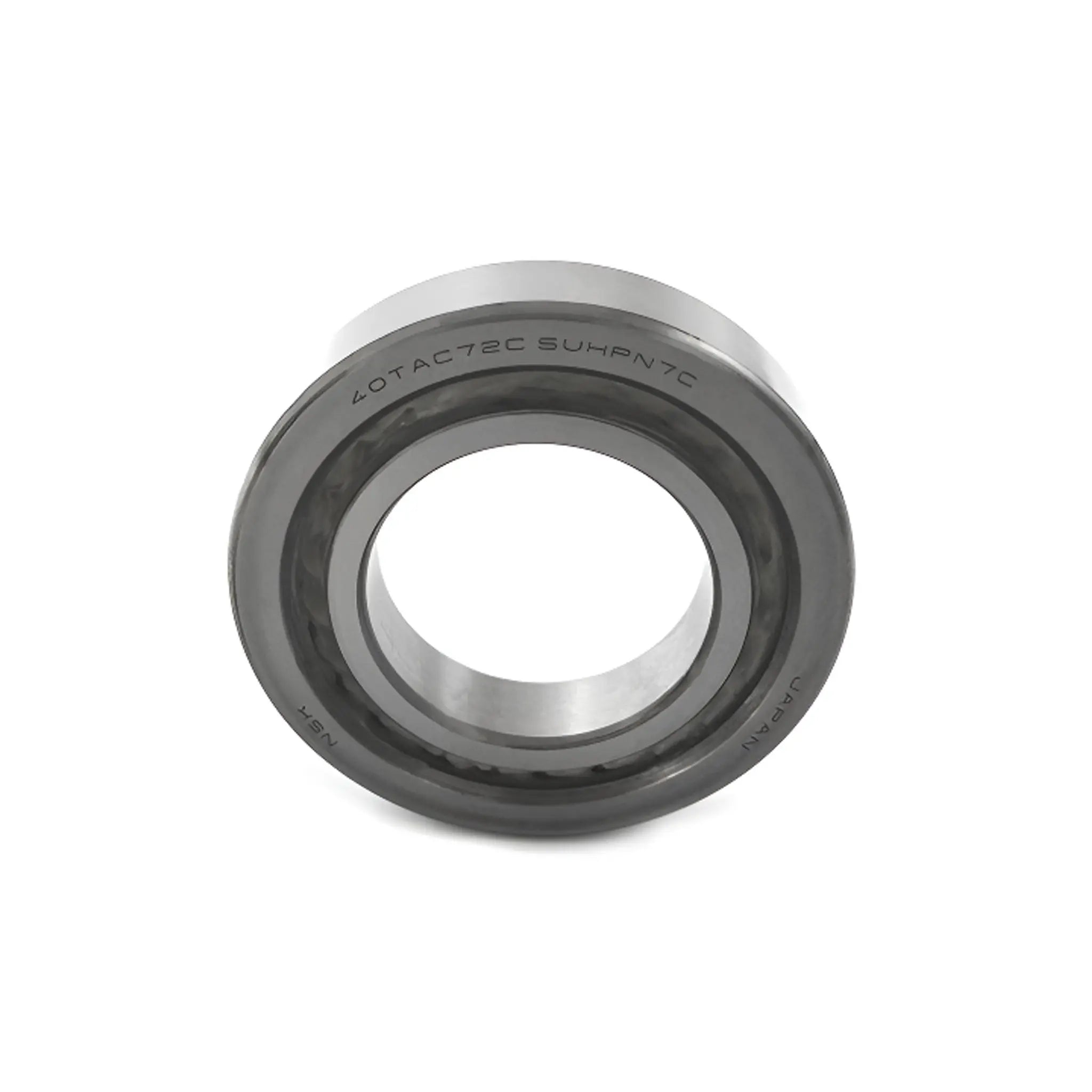

NSK angular contact ball bearing axial 40TAC72CSUHPN7C
Detailed description of the bearing NSK 40TAC72CSUHPN7C
The NSK 40TAC72CSUHPN7C bearing is a high-precision ball screw bearing specifically designed for use in high-load applications. It offers outstanding performance, durability, and reliability, especially in CNC machines, machine tools, and other precision industrial systems.
Technical features of the NSK 40TAC72CSUHPN7C
1. High load capacity
The bearing features an optimized contact angle geometry that enables increased axial and radial load carrying capacity. This makes it ideal for applications involving high loads.
2nd precision class
The NSK 40TAC72CSUHPN7C belongs to the highest precision class (PN7C), which guarantees minimal deviations and excellent rotational accuracy. This is essential for applications requiring the highest precision.
3. Heat resistance
Thanks to special materials and lubricants, the bearing remains stable even under high temperatures. Thermal stability ensures consistent performance under varying operating conditions.
4. Corrosion protection
The bearing is coated with a special coating that protects it from moisture and aggressive chemicals. This extends its service life even in demanding environments.
Application areas of the NSK 40TAC72CSUHPN7C
machine tools
The bearing is ideal for milling, turning and grinding machines where precision and stability are crucial.
CNC machines
In CNC applications, the NSK 40TAC72CSUHPN7C ensures smooth movement and guarantees precise machining.
robotics
The precise control and high load capacity make this bearing the perfect choice for robot joints and actuators.
Advantages of the NSK 40TAC72CSUHPN7C
1. Longevity
Thanks to high-quality materials and a robust construction, the bearing offers an exceptionally long service life.
2. Low maintenance
The bearing is already factory-lubricated with a high-performance lubricant that minimizes maintenance requirements.
3. Higher efficiency
Thanks to the low friction in the bearing, energy losses are reduced, which increases the efficiency of the entire machine.
Installation of the NSK 40TAC72CSUHPN7C
1. Cleaning and preparation
Before installation, the bearing should be thoroughly cleaned and freed of any protective oils. Use brake cleaner or thinner to ensure optimal grease adhesion.
2. Installation instructions
To avoid damage, the bearing should be installed using the correct tools and without excessive force. Follow the machine manufacturer's instructions for specific details.
3. Lubrication
Make sure lubrication is sufficient, but not excessive. Factory lubrication is usually sufficient for initial use.
Frequently Asked Questions (FAQs)
What does the designation “40TAC72CSUHPN7C” mean?
- 40TAC72 : inner diameter 40 mm, outer diameter 72 mm.
- CSU : Spindle bearing with single row ball arrangement.
- HP : High-precision design.
- N7C : Special precision class.
Can the bearing withstand high temperatures?
Yes, the NSK 40TAC72CSUHPN7C is designed for applications with varying temperatures and remains stable even under demanding conditions.
How often should the bearing be serviced?
In most applications, a regular inspection every 6 to 12 months is sufficient.
Conclusion
The NSK 40TAC72CSUHPN7C is a leading-edge ball screw bearing. With its exceptional precision, durability, and versatility, it is the ideal choice for applications requiring the highest quality.
Contact us
We are happy to provide you with further information or technical support!
What does the suffix mean
The expert's advice
RS, 2RS, 2RSH, 2RS1, RSR, 2RSR, E, EE, LLU, LLB, DU, DDU
These suffixes indicate whether the bearing is equipped with one or two rubber seals. For 123 ball bearings, the number 2 indicates that the bearing is sealed on both sides.
C3, C4
Indicates increased internal clearance. Often referred to as high-speed capability, this indicates that the bearing is designed for high speeds and moderate temperatures. Caution: A bearing with increased internal clearance will not perform optimally at low speeds. We recommend consulting the technical data sheet for the bearing in question to verify the speed limit.
ZZ, 2Z, ZR, Z
These suffixes indicate whether the bearing is equipped with one or two metal baffles for dust protection. For 123 ball bearings, we mark whether the bearing is sealed on both sides with ZZ seals.
TN9, TVH, TVP, G15
These suffixes indicate that the cage that keeps the balls spaced apart in the bearing is made of polymer material, usually glass fiber reinforced polyamide.
ABEC
The ABEC standard is used to classify bearings based on their machining tolerances. However, it is often criticized for not taking into account certain critical technologies that ensure a bearing's functionality, efficiency, and service life. Therefore, 123Kugellager does not use this standard.
BHT / VT
This suffix indicates that the bearing is designed for very high operating temperatures. The exact temperature is usually indicated after this suffix. Caution: These bearings are not suitable for all applications and require high temperatures to ensure optimal service life.
