Fanuc control panel parts – A86L-0001-0298 / A98L-0005-0252
Tax excluded. Shipping calculated at checkout
The Fanuc control panel parts A86L-0001-0298 and A98L-0005-0252 are
Original components for CNC operator panels. They serve as replacements.
for worn or damaged controls and contribute to
to restore reliable and safe machine operation.
Advantages of Fanuc control panel components
Reliable spare parts for Fanuc operator panels

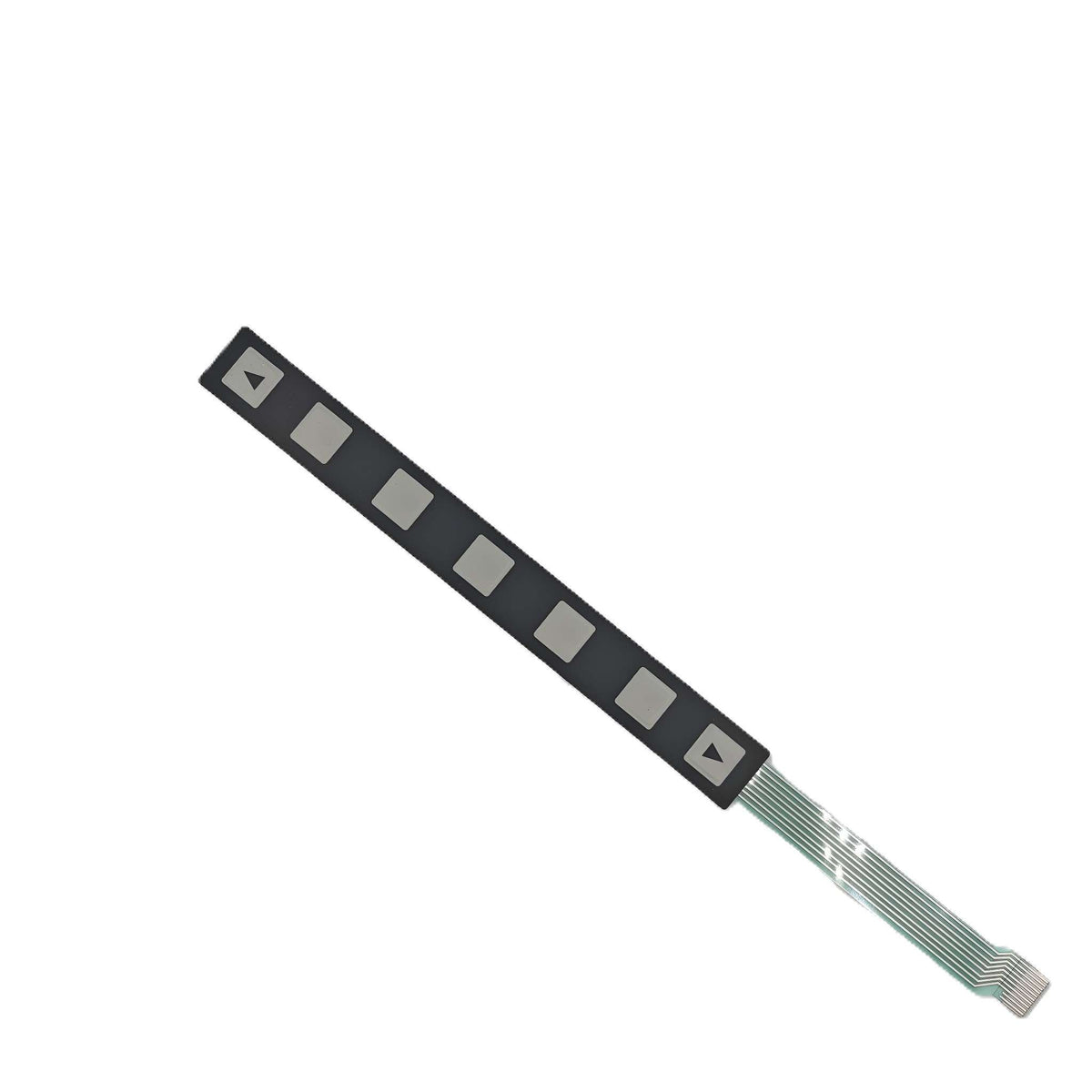

Membrane keyboard switch for Fanuc 7 keys
Fanuc
A86L-0001-0298 & A98L-0005-0252

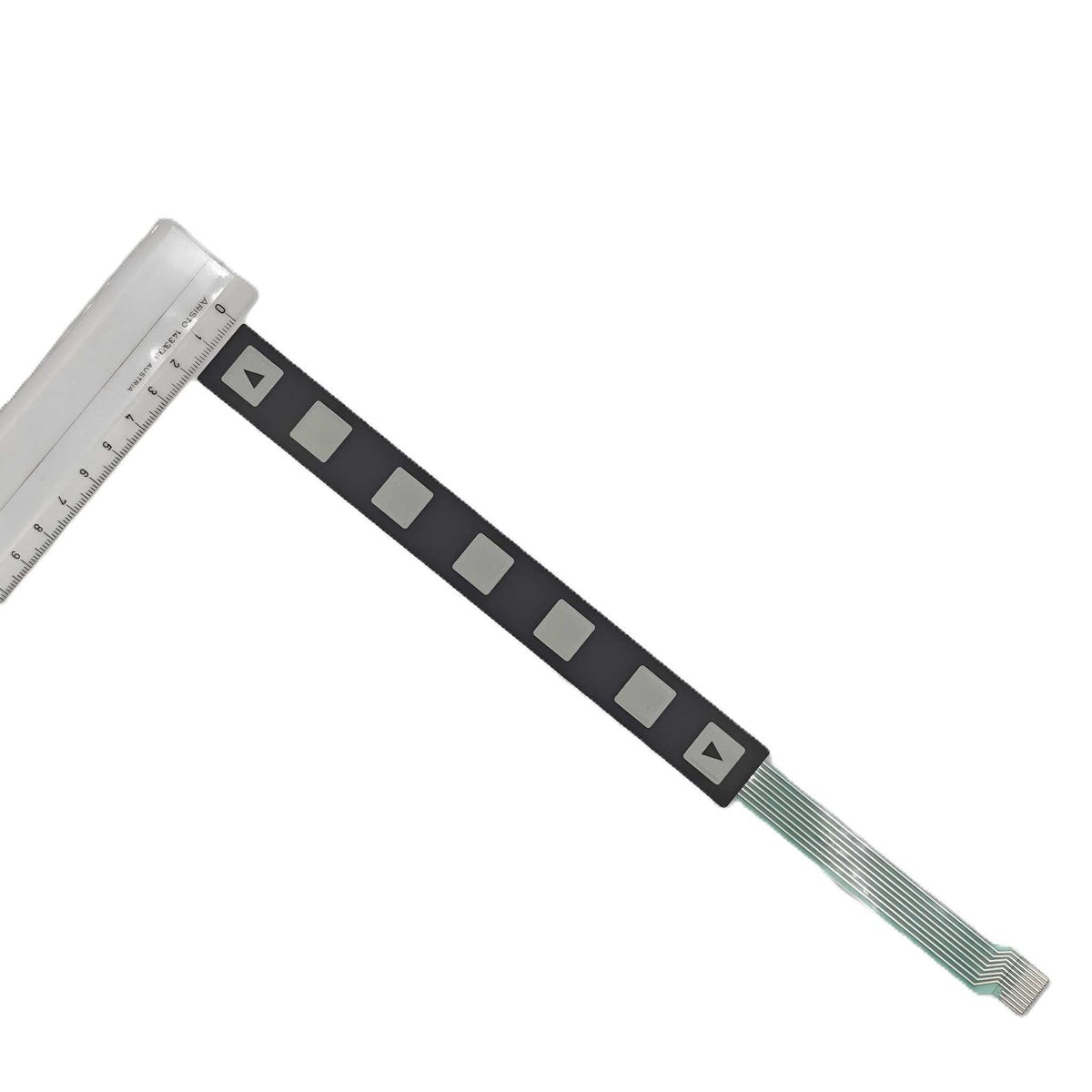

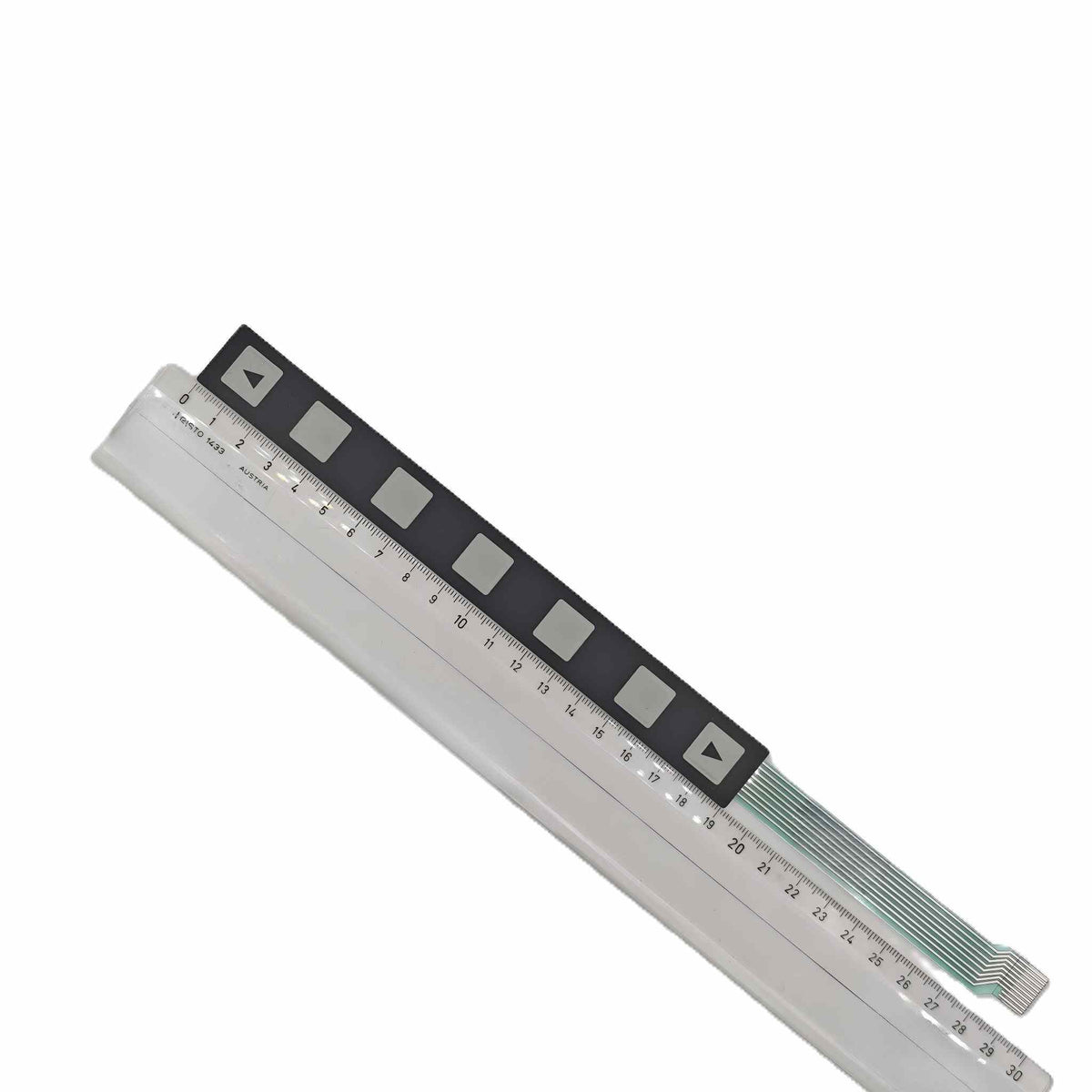

192 x 20 mm
suitable for industrial environments

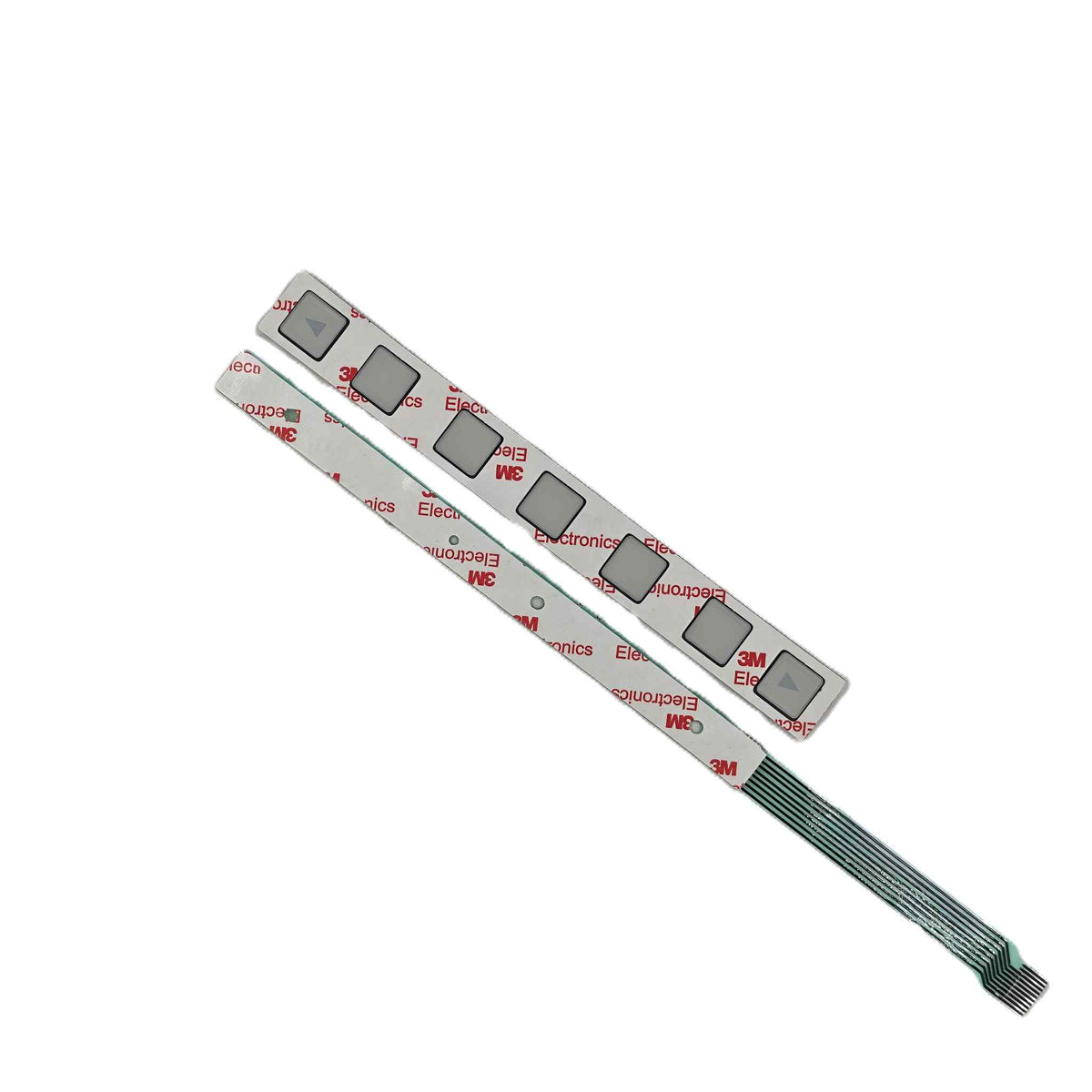

2-piece set
Questions about Fanuc control panel parts
What is a membrane keyboard or keypad for Fanuc controllers?
A membrane keyboard is the thin, flexible film on the control panel that displays the labeled keys. It transmits the pressure points to the underlying contacts and simultaneously serves as a protective surface.
When should a membrane keyboard be replaced?
-
An exchange is advisable if:
- Keys no longer respond reliably
- the surface is damaged
- Labels are barely legible
- the foil is peeling off or has cracks
In these cases, the film often impairs the operation of the CNC control.
Are the membrane films difficult to replace?
No. Most Fanuc keypad overlays are self-adhesive and can be replaced without special tools.
Peel off the old film → clean the surface → apply the new film → done.
Do the films fit all Fanuc models?
No. Fanuc uses many different panel sizes and layouts.
Therefore, it is important to use the correct part number (e.g. A98L-0001-xxxx).
Buttons, shape and cutouts vary depending on the model, series and machine manufacturer.
Does the membrane keyboard work without any additional components?
Yes, the film only covers the outer control surface.
The electronic contacts and the actual keypad remain unchanged underneath.
You only need a new film if the surface is worn out.
Which machine manufacturers use such Fanuc control panels?
Many machine tool manufacturers use Fanuc controls, including, for example:
DMG Mori
Mazak
Doosan
Haas
Okuma
Brother
Nakamura
Robodrill / Fanuc itself
However, compatibility depends on the type of panel used, not the machine type.
Are the films oil and coolant resistant?
Yes, high-quality keycap membranes are made of robust polyester and are designed for harsh industrial environments.
They withstand typical stresses such as oil mist, dust and heavy use.
